micromechanical::core::KinematicHypothesisLocalization< T > Struct Template Reference

Localize the macroscopic stress to the microscopic contact force. More...

#include <localize.hpp>

Inheritance diagram for micromechanical::core::KinematicHypothesisLocalization< T >:

Collaboration diagram for micromechanical::core::KinematicHypothesisLocalization< T >:

Public Member Functions
Eigen::Matrix< T, Eigen::Dynamic, 3 >	localizeStrain (const Eigen::Matrix< T, 6, 1 > &eps, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	localize the marcro strain to micro contact displacement
Public Member Functions inherited from micromechanical::core::MicromechanicalBase< T >
	MicromechanicalBase (ContactLawBase< T > *contact, const std::map< std::string, T > &props={}, T npv=1e9, T radius=0.65e-3)
	constructor
	MicromechanicalBase (ContactLawType type, const std::map< std::string, T > &props={}, T npv=1e9, T radius=0.65e-3)
	constructor
	MicromechanicalBase (const std::string &path, const std::map< std::string, T > &props={}, T npv=1e9, T radius=0.65e-3)
	constructor
	MicromechanicalBase ()=default
	default constructor
virtual	~MicromechanicalBase ()=default
	destructor
void	setContactLaw (ContactLawType type, const std::map< std::string, T > &props={})
	Set the contact law if it is not set in the constructor.
void	setContactLaw (const std::string &path, const std::map< std::string, T > &props={})
	Set the contact law if it is not set in the constructor.
void	setContactLaw (ContactLawBase< T > *contact)
	Set the contact law if it is not set in the constructor.
std::vector< StateVariable< T > >	run ()
	Run the micromechanical model.
void	umat (const T *dstran, T *stress, T *statev, T *ddsdde=nullptr, const bool initialize=false, const bool normalize_ddsdde=true)
	ABAQUS UMAT interface.
void	vumat (const int nBlock, const T *strainInc, const T *stressOld, T *stressNew, const T *stateOld, T *stateNew, const bool initialize=false)
	ABAQUS VUMAT interface.

Additional Inherited Members
Public Attributes inherited from micromechanical::core::MicromechanicalBase< T >
std::shared_ptr< ContactLawBase< T > >	contact
	contact law
std::shared_ptr< Integration< T > >	integration
	gauss integration points
std::shared_ptr< Load< T > >	load
	load
std::shared_ptr< DebugVariable< T > >	debugVariable = std::shared_ptr<DebugVariable<T>>(nullptr)
	debug variable
std::string	name = "Undefined"
	name of the model
std::vector< StateVariable< T > >	stateVars = {}
	state variables of the current run
std::shared_ptr< Options< T > >	options = std::shared_ptr<Options<T>>(nullptr)
	options for the micromechanical model
int	_phase = 0
	index of the phase
int	_step = 0
	current step
int	_mixedLoad = 0
	number of mixed load steps
int	_integration = 0
	number of integration steps
Protected Member Functions inherited from micromechanical::core::MicromechanicalBase< T >
int	nstatev () const
StateVariable< T >	initialize ()
	Initialize the state variables.
virtual void	postInitialize (StateVariable< T > &sv)
	Post-initialize the state variables.
void	postProcess (StateVariable< T > &sv)
	Post-process the state variables.
void	resetCustomStateVariables (StateVariable< T > &sv0, StateVariable< T > &sv)
	Reset the custom state variables to zeros existing in the current state variables but not in the initial state variables.
virtual Eigen::Matrix< T, 6, 1 >	increment (const Eigen::Matrix< T, 6, 1 > &dx, Eigen::Matrix< T, 6, 1 > x, const Eigen::Matrix< T, 6, 6 > &S, const Eigen::Matrix< T, 6, 6 > &E, const Eigen::Matrix< T, 6, 6 > &G, const StateVariable< T > &sv0, StateVariable< T > &sv)=0
	Compute one increment.
void	fabricEvolution (const StateVariable< T > &sv0, StateVariable< T > &sv)
	Compute the fabric evolution.
virtual Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic >	stiffness (const StateVariable< T > &sv0, const StateVariable< T > &sv, const Eigen::Matrix< T, Eigen::Dynamic, 1 > kn=Eigen::Matrix< T, Eigen::Dynamic, 1 >::Zero(0, 1), const Eigen::Matrix< T, Eigen::Dynamic, 1 > ks=Eigen::Matrix< T, Eigen::Dynamic, 1 >::Zero(0, 1), bool original=false)=0
	Compute the stiffness matrix.
virtual void	macroMicroIntegrate (const Eigen::Matrix< T, 6, 6 > &K, const Eigen::Matrix< T, 6, 1 > &dsig, const Eigen::Matrix< T, 6, 1 > &deps, const StateVariable< T > &sv0, StateVariable< T > &sv)=0
	Integrate the macro-micro relation.
void	contactIntegrates (const Eigen::Matrix< T, Eigen::Dynamic, 3 > &dforce, const Eigen::Matrix< T, Eigen::Dynamic, 3 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Integrate all the contact laws with cache.
virtual void	contactIntegrate (int idx, const Eigen::Matrix< T, 3, 1 > &dforce, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv) const =0
	Integrate the contact law.
virtual Eigen::Matrix< T, Eigen::Dynamic, 3 >	localizeStress (const Eigen::Matrix< T, 6, 1 > &sig, const StateVariable< T > &sv0, StateVariable< T > &sv)
	localize the marcro stress to micro contact force
virtual Eigen::Matrix< T, 6, 1 >	averageStress (const Eigen::Matrix< T, Eigen::Dynamic, 3 > force, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Average the micro contact force to macro stress.
virtual Eigen::Matrix< T, 6, 1 >	averageStrain (const Eigen::Matrix< T, Eigen::Dynamic, 3 > disp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Average the micro contact displacement to macro strain.

Detailed Description

template<typename T>
struct micromechanical::core::KinematicHypothesisLocalization< T >

Localize the macroscopic stress to the microscopic contact force.

Member Function Documentation

localizeStrain()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 3 > micromechanical::core::KinematicHypothesisLocalization< T >::localizeStrain ( const Eigen::Matrix< T, 6, 1 > & eps, const StateVariable< T > & sv0, StateVariable< T > & sv )

inlineoverridevirtual

localize the marcro strain to micro contact displacement

Parameters

eps	macro strain
sv0	initial state variable
sv	state variable

Returns

micro contact displacement

Reimplemented from micromechanical::core::MicromechanicalBase< T >.

References micromechanical::math::ignoreDistractions(), micromechanical::core::MicromechanicalBase< T >::integration, micromechanical::core::MicromechanicalBase< T >::options, and micromechanical::math::vec2mat().

Referenced by micromechanical::ChangHicher< T >::macroMicroIntegrate().

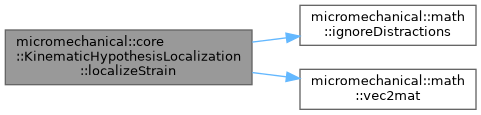

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this struct was generated from the following file:

• include/micromechanical/core/localize.hpp
