SIMSAND contact law. More...

#include <simsand.hpp>

Inheritance diagram for micromechanical::contacts::SIMSANDContactLaw< T >:

[legend]

Collaboration diagram for micromechanical::contacts::SIMSANDContactLaw< T >:

[legend]

Public Member Functions
	SIMSANDContactLaw (const std::map< std::string, T > &props={})

void	initialize (StateVariable< T > &sv) override
	initialize the contact law

T	yieldSurface (int idx, T fn, T fr, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	Yield function for elastoplastic contact laws.

Public Member Functions inherited from micromechanical::core::ElastoplasticContactLaw< T >
void	setPlasticMethod (const std::string &method)
	set the plastic method

Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic >	yieldSurfaces (int idx, const Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > &fn, const Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > &fr, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Calculate yield function for multiple times.

Public Member Functions inherited from micromechanical::core::ContactLawBase< T >
	ContactLawBase (const std::map< std::string, T > &props={})
	constructor

virtual	~ContactLawBase ()=default
	destructor

virtual std::vector< std::string >	symmetricContactScalars ()
	Symmetric contact scalar variables.

virtual std::vector< std::string >	symmetricContactVectors ()
	Symmetric contact vector variables.

ContactLawBase &	operator= (const ContactLawBase &other)
	move operator

T	frictionCoefficient (int idx, const StateVariable< T > &sv0, const StateVariable< T > &sv)
	calculate the friction coefficient combined with different criteria

Eigen::Matrix< T, 3, 3 >	forceDisplacement (int idx, Eigen::Matrix< T, 3, 1 > &ddisp, Eigen::Matrix< T, 3, 3 > &Ke, const StateVariable< T > &sv0, StateVariable< T > &sv)
	integrate the force-displacement relation

Public Member Functions inherited from micromechanical::core::ChangStiffness< T >
Eigen::Matrix< T, 3, 3 >	elasticStiffness (int idx, T fn, const StateVariable< T > &sv0, const StateVariable< T > &sv) override
	Calculate the elastic stiffness matrix.

Public Member Functions inherited from micromechanical::core::ExponentialBreakageCSL< T >
T	CSL (int idx, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	calculate the critical state line

Public Attributes
std::string	name = "SIMSAND"

Public Attributes inherited from micromechanical::core::ElastoplasticContactLaw< T >
std::string	plasticMethod = "CPA"
	Plastic method.

std::string	type = "Elastoplastic"
	Type of the contact law.

Public Attributes inherited from micromechanical::core::ContactLawBase< T >
std::shared_ptr< Material< T > >	material
	Material properties.

std::string	name = "Undefined"
	Name of the contact law.

std::string	type = "Undefined"
	Type of the contact law.

int	nstatev_custom = 0
	Number of custom state variables.

bool	plastic_displacement = false
	Flag to save the plastic displacement in the state variables.

std::shared_ptr< Options< T > >	options = std::shared_ptr<Options<T>>(new Options<T>())
	options for the micromechanical model

std::shared_ptr< DebugVariable< T > >	debugVariable = std::shared_ptr<DebugVariable<T>>(new DebugVariable<T>())
	debug variable

int	_phase = 0
	index of the phase

int	_step = 0
	current step

int	_mixedLoad = 0
	number of mixed load steps

int	_integration = 0
	number of integration steps

int	_increment = 0
	number of contact increments

int	_plasticCorrection = 0
	number of contact plastic corrections

Protected Member Functions
Eigen::Matrix< T, 3, 1 >	dfdforce (int idx, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	Derivative of the yield function with respect to the force.

Eigen::Matrix< T, 3, 1 >	dgdforce (int idx, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	Derivative of the potential function with respect to the force.

T	hardening (int idx, const Eigen::Matrix< T, 3, 1 > &dgdforce, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	Hardening items for elastoplastic contact laws.

void	updateHardeningVariables (int idx, T dlambda, const Eigen::Matrix< T, 3, 1 > &ddispp, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	Update the hardening variables.

Protected Member Functions inherited from micromechanical::core::ElastoplasticContactLaw< T >
bool	isExplicit () const
	check if the plastic method is explicit

bool	isCPA () const
	check if the plastic method is CPA

bool	isCPPM () const
	check if the plastic method is CPPM

Eigen::Matrix< T, 3, 3 >	integrate (int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const Eigen::Matrix< T, 3, 3 > &Ke, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	integrate the force-displacement contact law, with a number of increments.

Eigen::Matrix< T, 3, 3 >	stiffness (int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv) override
	calculate the elastoplastic stiffness matrix

virtual bool	isConverged (int idx, T f, bool trial, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Determine whether the contact force state is converged to the yield surface or the force state is in the elastic region.

virtual T	plasticModulus (int idx, const Eigen::Matrix< T, 3, 3 > &Ke, const Eigen::Matrix< T, 3, 1 > &dfdforce, const Eigen::Matrix< T, 3, 1 > &dgdforce, T hardening, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Calculate the plastic modulus.

virtual T	plasticMultiplier (int idx, T f, const Eigen::Matrix< T, 3, 3 > &Ke, const Eigen::Matrix< T, 3, 1 > &ddisp, const Eigen::Matrix< T, 3, 1 > &dfdforce, T Kp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Calculate the plastic multiplier.

Eigen::Matrix< T, 3, 3 >	ExplicitCPA (int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Explicit method for elastoplastic contact laws.

Eigen::Matrix< T, 3, 3 >	CPPM (int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	CPPM method for elastoplastic contact laws.

virtual void	revertHardeningVariables (int idx, T dlambda, const Eigen::Matrix< T, 3, 1 > &ddispp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Revert the hardening variables.

virtual void	YieldSurfaceCorrection (int idx, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Yield surface correction to keep the force state on the yield surface.

virtual void	maintainYieldSurface (int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const Eigen::Matrix< T, 3, 1 > &dforce, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Revert state variables from elastic state to maintain the force state on the yield surface.

Protected Member Functions inherited from micromechanical::core::ContactLawBase< T >
Eigen::Matrix< T, 3, 3 >	increment (int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const Eigen::Matrix< T, 3, 3 > &Ke, const StateVariable< T > &sv0, StateVariable< T > &sv)
	Calculate one increment.

virtual void	check (int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	check the convergence of the contact law

virtual void	preIntegration (int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	pre-processing before the integration

virtual void	postIntegration (int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	post-processing after the integration

virtual void	preIncrement (int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	pre-processing before the increment

virtual void	postIncrement (int idx, const Eigen::Matrix< T, 3, 1 > &ddisp, const StateVariable< T > &sv0, StateVariable< T > &sv)
	post-processing after the increment

Protected Member Functions inherited from micromechanical::core::CSLBase< T >
T	tanphip (int idx, const StateVariable< T > &sv0, StateVariable< T > &sv)

T	tanphipt (int idx, const StateVariable< T > &sv0, StateVariable< T > &sv)

Detailed Description

template<typename T>
struct micromechanical::contacts::SIMSANDContactLaw< T >

SIMSAND contact law.

Note: 397 state variables

Constructor & Destructor Documentation

◆ SIMSANDContactLaw()

template<typename T>

micromechanical::contacts::SIMSANDContactLaw< T >::SIMSANDContactLaw ( const std::map< std::string, T > & props = {} )

inlineexplicit

Member Function Documentation

◆ dfdforce()

template<typename T>

Eigen::Matrix< T, 3, 1 > micromechanical::contacts::SIMSANDContactLaw< T >::dfdforce	(	int	idx,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineoverrideprotectedvirtual

Derivative of the yield function with respect to the force.

Parameters

idx	index of the integration point
sv0	initial state variable
sv	state variable

Returns: the derivative of the yield function with respect to the force

Implements micromechanical::core::ElastoplasticContactLaw< T >.

References dfdforce(), micromechanical::core::StateVariable< T >::fnc(), micromechanical::core::StateVariable< T >::fr(), and micromechanical::core::StateVariable< T >::nst().

Referenced by dfdforce().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dgdforce()

template<typename T>

Eigen::Matrix< T, 3, 1 > micromechanical::contacts::SIMSANDContactLaw< T >::dgdforce	(	int	idx,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineoverrideprotectedvirtual

Derivative of the potential function with respect to the force.

Parameters

idx	index of the integration point
sv0	initial state variable
sv	state variable

Returns: the derivative of the potential function with respect to the force

Implements micromechanical::core::ElastoplasticContactLaw< T >.

References dgdforce(), micromechanical::core::StateVariable< T >::fnc(), micromechanical::core::StateVariable< T >::fr(), micromechanical::core::ContactLawBase< T >::material, micromechanical::core::StateVariable< T >::nst(), and micromechanical::core::CSLBase< T >::tanphipt().

Referenced by dgdforce(), and hardening().

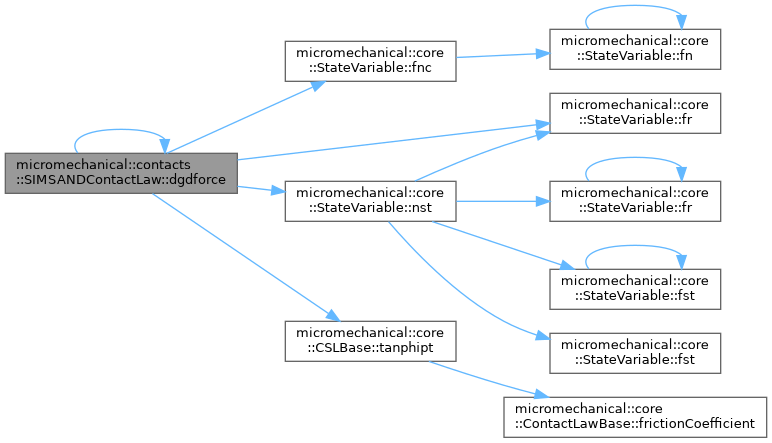

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hardening()

template<typename T>

T micromechanical::contacts::SIMSANDContactLaw< T >::hardening	(	int	idx,
		const Eigen::Matrix< T, 3, 1 > &	dgdforce,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineoverrideprotectedvirtual

Hardening items for elastoplastic contact laws.

Parameters

idx	index of the integration point
dgdforce	derivative of the potential function with respect to the force
sv0	initial state variable
sv	state variable

Returns: the hardening items

Implements micromechanical::core::ElastoplasticContactLaw< T >.

References dgdforce(), micromechanical::core::ContactLawBase< T >::material, micromechanical::core::StateVariable< T >::nst(), micromechanical::core::CSLBase< T >::tanphip(), micromechanical::core::StateVariable< T >::upr(), and micromechanical::core::StateVariable< T >::vectors.

Here is the call graph for this function:

◆ initialize()

template<typename T>

void micromechanical::contacts::SIMSANDContactLaw< T >::initialize ( StateVariable< T > & sv )

inlineoverridevirtual

initialize the contact law

Parameters

sv	state variable

Reimplemented from micromechanical::core::ContactLawBase< T >.

References micromechanical::core::ExponentialBreakageCSL< T >::CSL().

Here is the call graph for this function:

◆ updateHardeningVariables()

template<typename T>

void micromechanical::contacts::SIMSANDContactLaw< T >::updateHardeningVariables	(	int	idx,
		T	dlambda,
		const Eigen::Matrix< T, 3, 1 > &	ddispp,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineoverrideprotectedvirtual

Update the hardening variables.

Parameters

idx	index of the integration point
dlambda	plastic multiplier
ddispp	plastic displacement increment
sv0	initial state variable
sv	state variable

Implements micromechanical::core::ElastoplasticContactLaw< T >.

◆ yieldSurface()

template<typename T>

T micromechanical::contacts::SIMSANDContactLaw< T >::yieldSurface	(	int	idx,
		T	fn,
		T	fr,
		const StateVariable< T > &	sv0,
		StateVariable< T > &	sv )

inlineoverridevirtual

Yield function for elastoplastic contact laws.

Parameters

idx	index of the integration point
fn	normal force
fr	shear force
sv0	initial state variable
sv	state variable

Returns: the yield function

Implements micromechanical::core::ElastoplasticContactLaw< T >.

References micromechanical::core::ContactLawBase< T >::material, micromechanical::core::CSLBase< T >::tanphip(), and micromechanical::core::StateVariable< T >::ur().

Here is the call graph for this function:

Member Data Documentation

◆ name

template<typename T>

std::string micromechanical::contacts::SIMSANDContactLaw< T >::name = "SIMSAND"

The documentation for this struct was generated from the following file:

include/micromechanical/contacts/simsand.hpp
