Material properties for contact laws. More...

#include <material.hpp>

Public Member Functions
	Material (const std::map< std::string, T > &props={})
	Constructor.

virtual	~Material ()=default

void	initialize (StateVariable< T > &sv)
	Initialize the material.

T &	operator[] (const std::string &key)
	Access material properties.

T	operator[] (const std::string &key) const
	Access material properties.

T	at (const std::string &key) const
	Access material properties.

T	sin_phi_mises (T ba=0.0, T Ra=1.0) const
	Friction angle sine of Von Mises failure criteria.

T	sin_phi_tresca (T ba=0.0, T Ra=1.0) const
	Friction angle sine of Tresca failure criteria.

T	sin_phi_smp (T ba=0.0, T Ra=1.0) const
	Friction angle sine of SMP failure criteria.

T	phi_combined (T ba=0.0, T Ra=1.0, T weight_mises=0.0, T weight_tresca=0.0, T weight_mohr_coulomb=1.0, T weight_smp=0.0) const
	Combined friction angle.

T	get (const std::string &key, T default_=0.0) const
	Access material properties.

T	get_ (const std::string &key, const int idx, T default_=0.0)
	Get a parameter value with anisotropic factor.

void	set (const std::string &key, T value)
	Set material properties.

bool	__contains__ (const std::string &key) const
	Determine if the material has a property, to be used in Python.

void	__setitem__ (const std::string &key, T value)
	Set item.

void	setAnisotropicParameters (const std::string &key, const std::string &type="chang1990-ext", std::string evolution="zhao2020", const std::map< std::string, T > &coefs={})
	Set anisotropic parameters.

T	anisotropicFactor (const std::string &key, int idx)
	Return the anisotropic factor.

T	kn0_ (const int idx)
	reference normal stiffness

T	kt0_ (const int idx)
	reference tangential stiffness

T	fref_ (const int idx)
	reference force

T	krr_ (const int idx)
	ratio of tangential to normal stiffness

T	R_ (const int idx)
	ratio of normal to tangential stiffness

T	ne_ (const int idx)
	exponent in the equation of normal stiffness

T	ng_ (const int idx)
	exponent in the equation of tangential stiffness

T	cohesion_ (const int idx)
	cohesion

T	e0_ (const int idx)
	initial void ratio

T	ec0_ (const int idx)
	critical void ratio

T	emin_ (const int idx)
	minimum void ratio

T	emax_ (const int idx)
	maximum void ratio

T	Lambda_ (const int idx)
	slope of critical state line

T	kappa_ (const int idx)
	slope of swelling line

T	xi_ (const int idx)
	a parameter controlling the shape of critical state line

T	eref_ (const int idx)
	reference void ratio

T	eref0_ (const int idx)
	initial reference void ratio

T	pref_ (const int idx)
	reference pressure

T	np_ (const int idx)
	a parameter controlling the dilation

T	nd_ (const int idx)
	a parameter controlling the dilation

T	Ad_ (const int idx)
	a parameter controlling the dilation

T	erefu_ (const int idx)
	ultimate reference void ratio

T	b_ (const int idx)
	a parameter controlling the particle breakage

T	rho_ (const int idx)
	a parameter controlling the rate of particle breakage

T	nw_ (const int idx)
	a parameter controlling the particle breakage

T	vi_ (const int idx)
	initial slope of normal displacement versus tangential displacement curve

T	vf_ (const int idx)
	final slope of normal displacement versus tangential displacement curve

T	m_ (const int idx)
	a parameter controlling the shape of yield surface

T	n_ (const int idx)
	a parameter controlling the shape of yield surface

T	fb0_ (const int idx)
	initial adhesive force

T	fc0_ (const int idx)
	initial size of the yield surface

T	xib_ (const int idx)
	a parameter controlling the hardening of the adhesive force

T	xic_ (const int idx)
	a parameter controlling the hardening of the size of the yield surface

T	chi0_ (const int idx)
	initial bounding ratio

T	hp_ (const int idx)
	a parameter relating to plastic modulus of bounding surface effect

T	kp_ (const int idx)
	a parameter controlling the yield surface of SIMSAND model

T	kpr_ (const int idx)
	a parameter controlling the yield surface of SIMSAND model

T	h0_ (const int idx)
	a parameter controlling the hardening of the back stress ratio

T	ch_ (const int idx)
	a parameter controlling the hardening of the back stress ratio

T	c_ (const int idx)
	a parameter controlling the hardening of the back stress ratio

T	fnr_ (const int idx)
	mean effective stress when log(e) = 1 in the LCC line (log(e)-log(p) space)

T	rhoc_ (const int idx)
	slope of the LCC line in the log(e) - log(p) space

T	theta_ (const int idx)
	a constant exponent in the hardening behavior of p0

T	X_ (const int idx)
	a positive model parameter

T	V_ (const int idx)
	a large model parameter

T	kn0 () const
	reference normal stiffness

T	kt0 () const
	reference tangential stiffness

T	fref () const
	reference force

T	krr () const
	ratio of tangential to normal stiffness

T	R () const
	ratio of normal to tangential stiffness

T	ne () const
	exponent in the equation of normal stiffness

T	ng () const
	exponent in the equation of tangential stiffness

T	phi () const
	friction angle

T	cohesion () const
	cohesion

T	e0 () const
	initial void ratio

T	ec0 () const
	critical void ratio

T	emin () const
	minimum void ratio

T	emax () const
	maximum void ratio

T	Lambda () const
	slope of critical state line

T	kappa () const
	slope of swelling line

T	xi () const
	a parameter controlling the shape of critical state line

T	eref () const
	reference void ratio

T	eref0 () const
	initial reference void ratio

T	pref () const
	reference pressure

T	np () const
	a parameter controlling the dilation

T	nd () const
	a parameter controlling the dilation

T	Ad () const
	a parameter controlling the dilation

T	erefu () const
	ultimate reference void ratio

T	b () const
	a parameter controlling the particle breakage

T	rho () const
	a parameter controlling the rate of particle breakage

T	nw () const
	a parameter controlling the particle breakage

T	vi () const
	initial slope of normal displacement versus tangential displacement curve

T	vf () const
	final slope of normal displacement versus tangential displacement curve

T	m () const
	a parameter controlling the shape of yield surface

T	n () const
	a parameter controlling the shape of yield surface

T	fb0 () const
	initial adhesive force

T	fc0 () const
	initial size of the yield surface

T	xib () const
	a parameter controlling the hardening of the adhesive force

T	xic () const
	a parameter controlling the hardening of the size of the yield surface

T	chi0 () const
	initial bounding ratio

T	hp () const
	a parameter relating to plastic modulus of bounding surface effect

T	kp () const
	a parameter controlling the yield surface of SIMSAND model

T	kpr () const
	a parameter controlling the yield surface of SIMSAND model

T	h0 () const
	a parameter controlling the hardening of the back stress ratio

T	ch () const
	a parameter controlling the hardening of the back stress ratio

T	c () const
	a parameter controlling the hardening of the back stress ratio

T	pr () const
	mean effective stress when log(e) = 1 in the LCC line (log(e)-log(p) space)

T	rhoc () const
	slope of the LCC line in the log(e) - log(p) space

T	theta () const
	a constant exponent in the hardening behavior of p0

T	X () const
	a positive model parameter

T	V () const
	a large model parameter

T	phi_ (const int idx, T ba=0.0, T Ra=1.0, T weight_mises=0.0, T weight_tresca=0.0, T weight_mohr_coulomb=1.0, T weight_smp=0.0)
	friction angle

T	mu (T ba=0.0, T Ra=1.0, T weight_mises=0.0, T weight_tresca=0.0, T weight_mohr_coulomb=1.0, T weight_smp=0.0) const
	friction coefficient

T	mu_ (const int idx, T ba=0.0, T Ra=1.0, T weight_mises=0.0, T weight_tresca=0.0, T weight_mohr_coulomb=1.0, T weight_smp=0.0)

T	Mc (T ba=0.0, T Ra=1.0, T weight_mises=0.0, T weight_tresca=0.0, T weight_mohr_coulomb=1.0, T weight_smp=0.0) const
	Get the critical state slope for compression.

T	Mc_ (const int idx, T ba=0.0, T Ra=1.0, T weight_mises=0.0, T weight_tresca=0.0, T weight_mohr_coulomb=1.0, T weight_smp=0.0)
	Get the critical state slope for compression.

T	Me (T ba=0.0, T Ra=1.0, T weight_mises=0.0, T weight_tresca=0.0, T weight_mohr_coulomb=1.0, T weight_smp=0.0) const
	Get the critical state slope for extension.

T	Me_ (const int idx, T ba=0.0, T Ra=1.0, T weight_mises=0.0, T weight_tresca=0.0, T weight_mohr_coulomb=1.0, T weight_smp=0.0)
	Get the critical state slope for extension.

Static Public Member Functions
static std::map< std::string, T >	create (const std::vector< std::string > &keys, const std::vector< T > &values)
	Create a material.

static std::map< std::string, T >	elastic (const std::vector< T > &props)
	Create an elastic material.

static std::map< std::string, T >	elastic (T *props)
	Create an elastic material.

static std::map< std::string, T >	coulomb (const std::vector< T > &props)
	Create a coulomb material.

static std::map< std::string, T >	coulomb (T *props)
	Create a coulomb material.

static std::map< std::string, T >	exponential (const std::vector< T > &props)
	Create an exponential material.

static std::map< std::string, T >	exponential (T *props)
	Create an exponential material.

static std::map< std::string, T >	hyperbolic (const std::vector< T > &props)
	Create a hyperbolic material.

static std::map< std::string, T >	hyperbolic (T *props)
	Create a hyperbolic material.

static std::map< std::string, T >	hypoplastic (const std::vector< T > &props)
	Create a hypoplastic material.

static std::map< std::string, T >	hypoplastic (T *props)
	Create a hypoplastic material.

static std::map< std::string, T >	mcc (const std::vector< T > &props)
	Create a mcc material.

static std::map< std::string, T >	mcc (T *props)
	Create a mcc material.

static std::map< std::string, T >	sanisand (const std::vector< T > &props)
	Create a sanisand material.

static std::map< std::string, T >	sanisand (T *props)
	Create a sanisand material.

static std::map< std::string, T >	simsand (const std::vector< T > &props)
	Create a simsand material.

static std::map< std::string, T >	simsand (T *props)
	Create a simsand material.

static std::map< std::string, T >	osimsand (const std::vector< T > &props)
	Create a osimsand material.

static std::map< std::string, T >	osimsand (T *props)
	Create a osimsand material.

Public Attributes
std::map< std::string, T >	props = {}
	Material properties.

std::shared_ptr< Integration< T > >	integration = std::shared_ptr<Integration<T>>(nullptr)
	Integration.

std::map< std::string, std::shared_ptr< FabricTensor< T > > >	fabrics = {}
	Fabric tensors.

Detailed Description

template<typename T>
struct micromechanical::core::Material< T >

Material properties for contact laws.

Constructor & Destructor Documentation

◆ Material()

template<typename T>

micromechanical::core::Material< T >::Material ( const std::map< std::string, T > & props = {} )

inlineexplicit

Constructor.

Parameters

props Material properties

References props.

◆ ~Material()

template<typename T>

virtual micromechanical::core::Material< T >::~Material ( )

virtualdefault

Member Function Documentation

◆ contains()

template<typename T>

bool micromechanical::core::Material< T >::__contains__ ( const std::string & key ) const

inline

Determine if the material has a property, to be used in Python.

Parameters

key	Property name

Returns: True if the property exists

◆ setitem()

template<typename T>

void micromechanical::core::Material< T >::__setitem__	(	const std::string &	key,
		T	value )

inline

Set item.

Parameters

key	Property name
value	Property value

References set().

Here is the call graph for this function:

◆ Ad()

template<typename T>

T micromechanical::core::Material< T >::Ad ( ) const

inline

a parameter controlling the dilation

References at().

Here is the call graph for this function:

◆ Ad_()

template<typename T>

T micromechanical::core::Material< T >::Ad_ ( const int idx )

inline

a parameter controlling the dilation

References get_().

Here is the call graph for this function:

◆ anisotropicFactor()

template<typename T>

T micromechanical::core::Material< T >::anisotropicFactor	(	const std::string &	key,
		int	idx )

inline

Return the anisotropic factor.

Parameters

key	The key of the anisotropic parameter
idx	The index of the integration point

Returns: The anisotropic factor

Referenced by get_(), and phi_().

Here is the caller graph for this function:

◆ at()

template<typename T>

T micromechanical::core::Material< T >::at ( const std::string & key ) const

inline

Access material properties.

Parameters

key	Property name

Returns: Property value

Referenced by Ad(), b(), c(), ch(), chi0(), cohesion(), e0(), ec0(), emax(), emin(), eref(), eref0(), erefu(), fb0(), fc0(), fref(), h0(), hp(), kappa(), kn0(), kp(), kpr(), krr(), kt0(), Lambda(), m(), n(), nd(), ne(), ng(), np(), nw(), phi(), pr(), pref(), R(), rho(), rhoc(), theta(), V(), vf(), vi(), X(), xi(), xib(), and xic().

Here is the caller graph for this function:

◆ b()

template<typename T>

T micromechanical::core::Material< T >::b ( ) const

inline

a parameter controlling the particle breakage

References at().

Here is the call graph for this function:

◆ b_()

template<typename T>

T micromechanical::core::Material< T >::b_ ( const int idx )

inline

a parameter controlling the particle breakage

References get_().

Here is the call graph for this function:

◆ c()

template<typename T>

T micromechanical::core::Material< T >::c ( ) const

inline

a parameter controlling the hardening of the back stress ratio

References at().

Here is the call graph for this function:

◆ c_()

template<typename T>

T micromechanical::core::Material< T >::c_ ( const int idx )

inline

a parameter controlling the hardening of the back stress ratio

References get_().

Here is the call graph for this function:

◆ ch()

template<typename T>

T micromechanical::core::Material< T >::ch ( ) const

inline

a parameter controlling the hardening of the back stress ratio

References at().

Here is the call graph for this function:

◆ ch_()

template<typename T>

T micromechanical::core::Material< T >::ch_ ( const int idx )

inline

a parameter controlling the hardening of the back stress ratio

References get_().

Here is the call graph for this function:

◆ chi0()

template<typename T>

T micromechanical::core::Material< T >::chi0 ( ) const

inline

initial bounding ratio

References at().

Here is the call graph for this function:

◆ chi0_()

template<typename T>

T micromechanical::core::Material< T >::chi0_ ( const int idx )

inline

initial bounding ratio

References get_().

Here is the call graph for this function:

◆ cohesion()

template<typename T>

T micromechanical::core::Material< T >::cohesion ( ) const

inline

cohesion

References at().

Here is the call graph for this function:

◆ cohesion_()

template<typename T>

T micromechanical::core::Material< T >::cohesion_ ( const int idx )

inline

cohesion

References get_().

Here is the call graph for this function:

◆ coulomb() [1/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::coulomb ( const std::vector< T > & props )

inlinestatic

Create a coulomb material.

Parameters

props Material properties: kt0, R, phi

Returns: Coulomb material

References create(), and props.

Referenced by coulomb().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ coulomb() [2/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::coulomb ( T * props )

inlinestatic

Create a coulomb material.

Parameters

props Material properties: kt0, R, phi

Returns: Coulomb material

References coulomb(), and props.

Here is the call graph for this function:

◆ create()

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::create	(	const std::vector< std::string > &	keys,
		const std::vector< T > &	values )

inlinestatic

Create a material.

Parameters

keys	The keys of the material properties
values	The values of the material properties

References props.

Referenced by coulomb(), elastic(), exponential(), hyperbolic(), hypoplastic(), mcc(), osimsand(), sanisand(), and simsand().

Here is the caller graph for this function:

◆ e0()

template<typename T>

T micromechanical::core::Material< T >::e0 ( ) const

inline

initial void ratio

References at().

Here is the call graph for this function:

◆ e0_()

template<typename T>

T micromechanical::core::Material< T >::e0_ ( const int idx )

inline

initial void ratio

References get_().

Here is the call graph for this function:

◆ ec0()

template<typename T>

T micromechanical::core::Material< T >::ec0 ( ) const

inline

critical void ratio

References at().

Here is the call graph for this function:

◆ ec0_()

template<typename T>

T micromechanical::core::Material< T >::ec0_ ( const int idx )

inline

critical void ratio

References get_().

Here is the call graph for this function:

◆ elastic() [1/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::elastic ( const std::vector< T > & props )

inlinestatic

Create an elastic material.

Parameters

props Material properties: kt0, R

Returns: Elastic material

References create(), and props.

Referenced by elastic().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ elastic() [2/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::elastic ( T * props )

inlinestatic

Create an elastic material.

Parameters

props Material properties: kt0, R

Returns: Elastic material

References elastic(), and props.

Here is the call graph for this function:

◆ emax()

template<typename T>

T micromechanical::core::Material< T >::emax ( ) const

inline

maximum void ratio

References at().

Here is the call graph for this function:

◆ emax_()

template<typename T>

T micromechanical::core::Material< T >::emax_ ( const int idx )

inline

maximum void ratio

References get_().

Here is the call graph for this function:

◆ emin()

template<typename T>

T micromechanical::core::Material< T >::emin ( ) const

inline

minimum void ratio

References at().

Here is the call graph for this function:

◆ emin_()

template<typename T>

T micromechanical::core::Material< T >::emin_ ( const int idx )

inline

minimum void ratio

References get_().

Here is the call graph for this function:

◆ eref()

template<typename T>

T micromechanical::core::Material< T >::eref ( ) const

inline

reference void ratio

References at().

Here is the call graph for this function:

◆ eref0()

template<typename T>

T micromechanical::core::Material< T >::eref0 ( ) const

inline

initial reference void ratio

References at().

Here is the call graph for this function:

◆ eref0_()

template<typename T>

T micromechanical::core::Material< T >::eref0_ ( const int idx )

inline

initial reference void ratio

References get_().

Here is the call graph for this function:

◆ eref_()

template<typename T>

T micromechanical::core::Material< T >::eref_ ( const int idx )

inline

reference void ratio

References get_().

Here is the call graph for this function:

◆ erefu()

template<typename T>

T micromechanical::core::Material< T >::erefu ( ) const

inline

ultimate reference void ratio

References at().

Here is the call graph for this function:

◆ erefu_()

template<typename T>

T micromechanical::core::Material< T >::erefu_ ( const int idx )

inline

ultimate reference void ratio

References get_().

Here is the call graph for this function:

◆ exponential() [1/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::exponential ( const std::vector< T > & props )

inlinestatic

Create an exponential material.

Parameters

props Material properties: kt0, R, phi, e0, Lambda, xi, np, nd, eref0, erefu, b, rho, nw, Ad

Returns: Exponential material

References create(), and props.

Referenced by exponential().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ exponential() [2/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::exponential ( T * props )

inlinestatic

Create an exponential material.

Parameters

props Material properties: kt0, R, phi, e0, Lambda, xi, np, nd, eref0, erefu, b, rho, nw, Ad

Returns: Exponential material

References exponential(), and props.

Here is the call graph for this function:

◆ fb0()

template<typename T>

T micromechanical::core::Material< T >::fb0 ( ) const

inline

initial adhesive force

References at().

Here is the call graph for this function:

◆ fb0_()

template<typename T>

T micromechanical::core::Material< T >::fb0_ ( const int idx )

inline

initial adhesive force

References get_().

Here is the call graph for this function:

◆ fc0()

template<typename T>

T micromechanical::core::Material< T >::fc0 ( ) const

inline

initial size of the yield surface

References at().

Here is the call graph for this function:

◆ fc0_()

template<typename T>

T micromechanical::core::Material< T >::fc0_ ( const int idx )

inline

initial size of the yield surface

References get_().

Here is the call graph for this function:

◆ fnr_()

template<typename T>

T micromechanical::core::Material< T >::fnr_ ( const int idx )

inline

mean effective stress when log(e) = 1 in the LCC line (log(e)-log(p) space)

References get_().

Here is the call graph for this function:

◆ fref()

template<typename T>

T micromechanical::core::Material< T >::fref ( ) const

inline

reference force

References at().

Here is the call graph for this function:

◆ fref_()

template<typename T>

T micromechanical::core::Material< T >::fref_ ( const int idx )

inline

reference force

References get_().

Here is the call graph for this function:

◆ get()

template<typename T>

T micromechanical::core::Material< T >::get	(	const std::string &	key,
		T	default_ = 0.0 ) const

inline

Access material properties.

Parameters

key	Property name

Returns: Property value

Referenced by get_(), phi_combined(), sin_phi_mises(), sin_phi_smp(), and sin_phi_tresca().

Here is the caller graph for this function:

◆ get_()

template<typename T>

T micromechanical::core::Material< T >::get_	(	const std::string &	key,
		const int	idx,
		T	default_ = 0.0 )

inline

Get a parameter value with anisotropic factor.

Parameters

key	Property name
idx	The index of the integration point
default_	Default value

Returns: Property value

References anisotropicFactor(), and get().

Referenced by Ad_(), b_(), c_(), ch_(), chi0_(), cohesion_(), e0_(), ec0_(), emax_(), emin_(), eref0_(), eref_(), erefu_(), fb0_(), fc0_(), fnr_(), fref_(), h0_(), hp_(), kappa_(), kn0_(), kp_(), kpr_(), krr_(), kt0_(), Lambda_(), m_(), n_(), nd_(), ne_(), ng_(), np_(), nw_(), pref_(), R_(), rho_(), rhoc_(), theta_(), V_(), vf_(), vi_(), X_(), xi_(), xib_(), and xic_().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ h0()

template<typename T>

T micromechanical::core::Material< T >::h0 ( ) const

inline

a parameter controlling the hardening of the back stress ratio

References at().

Here is the call graph for this function:

◆ h0_()

template<typename T>

T micromechanical::core::Material< T >::h0_ ( const int idx )

inline

a parameter controlling the hardening of the back stress ratio

References get_().

Here is the call graph for this function:

◆ hp()

template<typename T>

T micromechanical::core::Material< T >::hp ( ) const

inline

a parameter relating to plastic modulus of bounding surface effect

References at().

Here is the call graph for this function:

◆ hp_()

template<typename T>

T micromechanical::core::Material< T >::hp_ ( const int idx )

inline

a parameter relating to plastic modulus of bounding surface effect

References get_().

Here is the call graph for this function:

◆ hyperbolic() [1/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::hyperbolic ( const std::vector< T > & props )

inlinestatic

Create a hyperbolic material.

Parameters

props Material properties: kt0, R, phi, e0, Lambda, xi, np, nd, eref0, erefu, b, rho, nw, Ad

Returns: Hyperbolic material

References create(), and props.

Referenced by hyperbolic().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hyperbolic() [2/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::hyperbolic ( T * props )

inlinestatic

Create a hyperbolic material.

Parameters

props Material properties: kt0, R, phi, e0, Lambda, xi, np, nd, eref0, erefu, b, rho, nw, Ad

Returns: Hyperbolic material

References hyperbolic(), and props.

Here is the call graph for this function:

◆ hypoplastic() [1/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::hypoplastic ( const std::vector< T > & props )

inlinestatic

Create a hypoplastic material.

Parameters

props Material properties: kt0, ng, phi, e0, Lambda, xi, np, nd, eref0, erefu, b, rho, nw, vi

Returns: Hypoplastic material

References create(), and props.

Referenced by hypoplastic().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hypoplastic() [2/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::hypoplastic ( T * props )

inlinestatic

Create a hypoplastic material.

Parameters

props Material properties: kt0, ng, phi, e0, Lambda, xi, np, nd, eref0, erefu, b, rho, nw, vi

Returns: Hypoplastic material

References hypoplastic(), and props.

Here is the call graph for this function:

◆ initialize()

template<typename T>

void micromechanical::core::Material< T >::initialize ( StateVariable< T > & sv )

inline

Initialize the material.

Parameters

sv	State variable

◆ kappa()

template<typename T>

T micromechanical::core::Material< T >::kappa ( ) const

inline

slope of swelling line

References at().

Here is the call graph for this function:

◆ kappa_()

template<typename T>

T micromechanical::core::Material< T >::kappa_ ( const int idx )

inline

slope of swelling line

References get_().

Here is the call graph for this function:

◆ kn0()

template<typename T>

T micromechanical::core::Material< T >::kn0 ( ) const

inline

reference normal stiffness

References at().

Here is the call graph for this function:

◆ kn0_()

template<typename T>

T micromechanical::core::Material< T >::kn0_ ( const int idx )

inline

reference normal stiffness

References get_().

Here is the call graph for this function:

◆ kp()

template<typename T>

T micromechanical::core::Material< T >::kp ( ) const

inline

a parameter controlling the yield surface of SIMSAND model

References at().

Here is the call graph for this function:

◆ kp_()

template<typename T>

T micromechanical::core::Material< T >::kp_ ( const int idx )

inline

a parameter controlling the yield surface of SIMSAND model

References get_().

Here is the call graph for this function:

◆ kpr()

template<typename T>

T micromechanical::core::Material< T >::kpr ( ) const

inline

a parameter controlling the yield surface of SIMSAND model

References at().

Here is the call graph for this function:

◆ kpr_()

template<typename T>

T micromechanical::core::Material< T >::kpr_ ( const int idx )

inline

a parameter controlling the yield surface of SIMSAND model

References get_().

Here is the call graph for this function:

◆ krr()

template<typename T>

T micromechanical::core::Material< T >::krr ( ) const

inline

ratio of tangential to normal stiffness

References at().

Here is the call graph for this function:

◆ krr_()

template<typename T>

T micromechanical::core::Material< T >::krr_ ( const int idx )

inline

ratio of tangential to normal stiffness

References get_().

Here is the call graph for this function:

◆ kt0()

template<typename T>

T micromechanical::core::Material< T >::kt0 ( ) const

inline

reference tangential stiffness

References at().

Here is the call graph for this function:

◆ kt0_()

template<typename T>

T micromechanical::core::Material< T >::kt0_ ( const int idx )

inline

reference tangential stiffness

References get_().

Here is the call graph for this function:

◆ Lambda()

template<typename T>

T micromechanical::core::Material< T >::Lambda ( ) const

inline

slope of critical state line

References at().

Here is the call graph for this function:

◆ Lambda_()

template<typename T>

T micromechanical::core::Material< T >::Lambda_ ( const int idx )

inline

slope of critical state line

References get_().

Here is the call graph for this function:

◆ m()

template<typename T>

T micromechanical::core::Material< T >::m ( ) const

inline

a parameter controlling the shape of yield surface

References at().

Here is the call graph for this function:

◆ m_()

template<typename T>

T micromechanical::core::Material< T >::m_ ( const int idx )

inline

a parameter controlling the shape of yield surface

References get_().

Here is the call graph for this function:

◆ Mc()

template<typename T>

T micromechanical::core::Material< T >::Mc	(	T	ba = 0.0,
		T	Ra = 1.0,
		T	weight_mises = 0.0,
		T	weight_tresca = 0.0,
		T	weight_mohr_coulomb = 1.0,
		T	weight_smp = 0.0 ) const

inline

Get the critical state slope for compression.

References phi_combined(), and PI.

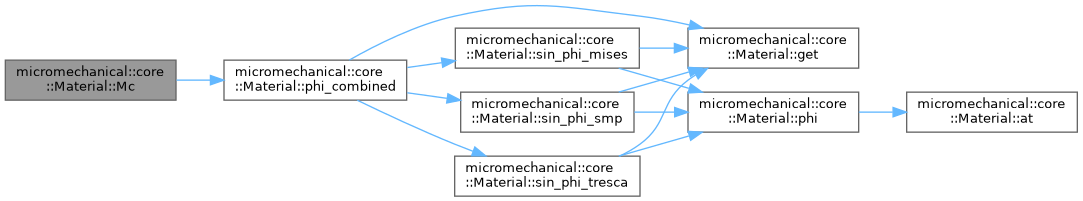

Here is the call graph for this function:

◆ Mc_()

template<typename T>

T micromechanical::core::Material< T >::Mc_	(	const int	idx,
		T	ba = 0.0,
		T	Ra = 1.0,
		T	weight_mises = 0.0,
		T	weight_tresca = 0.0,
		T	weight_mohr_coulomb = 1.0,
		T	weight_smp = 0.0 )

inline

Get the critical state slope for compression.

References phi_(), and PI.

Here is the call graph for this function:

◆ mcc() [1/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::mcc ( const std::vector< T > & props )

inlinestatic

Create a mcc material.

Parameters

props Material properties

Returns: mcc material

References create(), and props.

Referenced by mcc().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mcc() [2/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::mcc ( T * props )

inlinestatic

Create a mcc material.

Parameters

props Material properties

Returns: mcc material

References mcc(), and props.

Here is the call graph for this function:

◆ Me()

template<typename T>

T micromechanical::core::Material< T >::Me	(	T	ba = 0.0,
		T	Ra = 1.0,
		T	weight_mises = 0.0,
		T	weight_tresca = 0.0,
		T	weight_mohr_coulomb = 1.0,
		T	weight_smp = 0.0 ) const

inline

Get the critical state slope for extension.

References phi_combined(), and PI.

Here is the call graph for this function:

◆ Me_()

template<typename T>

T micromechanical::core::Material< T >::Me_	(	const int	idx,
		T	ba = 0.0,
		T	Ra = 1.0,
		T	weight_mises = 0.0,
		T	weight_tresca = 0.0,
		T	weight_mohr_coulomb = 1.0,
		T	weight_smp = 0.0 )

inline

Get the critical state slope for extension.

References phi_(), and PI.

Here is the call graph for this function:

◆ mu()

template<typename T>

T micromechanical::core::Material< T >::mu	(	T	ba = 0.0,
		T	Ra = 1.0,
		T	weight_mises = 0.0,
		T	weight_tresca = 0.0,
		T	weight_mohr_coulomb = 1.0,
		T	weight_smp = 0.0 ) const

inline

friction coefficient

References phi_combined(), and PI.

Here is the call graph for this function:

◆ mu_()

template<typename T>

T micromechanical::core::Material< T >::mu_	(	const int	idx,
		T	ba = 0.0,
		T	Ra = 1.0,
		T	weight_mises = 0.0,
		T	weight_tresca = 0.0,
		T	weight_mohr_coulomb = 1.0,
		T	weight_smp = 0.0 )

inline

References phi_(), and PI.

Here is the call graph for this function:

◆ n()

template<typename T>

T micromechanical::core::Material< T >::n ( ) const

inline

a parameter controlling the shape of yield surface

References at().

Here is the call graph for this function:

◆ n_()

template<typename T>

T micromechanical::core::Material< T >::n_ ( const int idx )

inline

a parameter controlling the shape of yield surface

References get_().

Here is the call graph for this function:

◆ nd()

template<typename T>

T micromechanical::core::Material< T >::nd ( ) const

inline

a parameter controlling the dilation

References at().

Here is the call graph for this function:

◆ nd_()

template<typename T>

T micromechanical::core::Material< T >::nd_ ( const int idx )

inline

a parameter controlling the dilation

References get_().

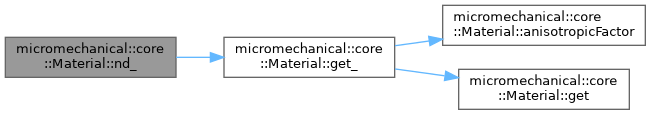

Here is the call graph for this function:

◆ ne()

template<typename T>

T micromechanical::core::Material< T >::ne ( ) const

inline

exponent in the equation of normal stiffness

References at().

Here is the call graph for this function:

◆ ne_()

template<typename T>

T micromechanical::core::Material< T >::ne_ ( const int idx )

inline

exponent in the equation of normal stiffness

References get_().

Here is the call graph for this function:

◆ ng()

template<typename T>

T micromechanical::core::Material< T >::ng ( ) const

inline

exponent in the equation of tangential stiffness

References at().

Here is the call graph for this function:

◆ ng_()

template<typename T>

T micromechanical::core::Material< T >::ng_ ( const int idx )

inline

exponent in the equation of tangential stiffness

References get_().

Here is the call graph for this function:

◆ np()

template<typename T>

T micromechanical::core::Material< T >::np ( ) const

inline

a parameter controlling the dilation

References at().

Here is the call graph for this function:

◆ np_()

template<typename T>

T micromechanical::core::Material< T >::np_ ( const int idx )

inline

a parameter controlling the dilation

References get_().

Here is the call graph for this function:

◆ nw()

template<typename T>

T micromechanical::core::Material< T >::nw ( ) const

inline

a parameter controlling the particle breakage

References at().

Here is the call graph for this function:

◆ nw_()

template<typename T>

T micromechanical::core::Material< T >::nw_ ( const int idx )

inline

a parameter controlling the particle breakage

References get_().

Here is the call graph for this function:

◆ operator[]() [1/2]

template<typename T>

T & micromechanical::core::Material< T >::operator[] ( const std::string & key )

inline

Access material properties.

Parameters

key	Property name

Returns: Property value

◆ operator[]() [2/2]

template<typename T>

T micromechanical::core::Material< T >::operator[] ( const std::string & key ) const

inline

Access material properties.

Parameters

key	Property name

Returns: Property value

◆ osimsand() [1/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::osimsand ( const std::vector< T > & props )

inlinestatic

Create a osimsand material.

Parameters

props Material properties

Returns: mcc material

References create(), and props.

Referenced by osimsand().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ osimsand() [2/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::osimsand ( T * props )

inlinestatic

Create a osimsand material.

Parameters

props Material properties

Returns: mcc material

References osimsand(), and props.

Here is the call graph for this function:

◆ phi()

template<typename T>

T micromechanical::core::Material< T >::phi ( ) const

inline

friction angle

References at().

Referenced by sin_phi_mises(), sin_phi_smp(), and sin_phi_tresca().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ phi_()

template<typename T>

T micromechanical::core::Material< T >::phi_	(	const int	idx,
		T	ba = 0.0,
		T	Ra = 1.0,
		T	weight_mises = 0.0,
		T	weight_tresca = 0.0,
		T	weight_mohr_coulomb = 1.0,
		T	weight_smp = 0.0 )

inline

friction angle

References anisotropicFactor(), and phi_combined().

Referenced by Mc_(), Me_(), and mu_().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ phi_combined()

template<typename T>

T micromechanical::core::Material< T >::phi_combined	(	T	ba = 0.0,
		T	Ra = 1.0,
		T	weight_mises = 0.0,
		T	weight_tresca = 0.0,
		T	weight_mohr_coulomb = 1.0,
		T	weight_smp = 0.0 ) const

inline

Combined friction angle.

References get(), PI, sin_phi_mises(), sin_phi_smp(), and sin_phi_tresca().

Referenced by Mc(), Me(), mu(), and phi_().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pr()

template<typename T>

T micromechanical::core::Material< T >::pr ( ) const

inline

mean effective stress when log(e) = 1 in the LCC line (log(e)-log(p) space)

References at().

Here is the call graph for this function:

◆ pref()

template<typename T>

T micromechanical::core::Material< T >::pref ( ) const

inline

reference pressure

References at().

Here is the call graph for this function:

◆ pref_()

template<typename T>

T micromechanical::core::Material< T >::pref_ ( const int idx )

inline

reference pressure

References get_().

Here is the call graph for this function:

◆ R()

template<typename T>

T micromechanical::core::Material< T >::R ( ) const

inline

ratio of normal to tangential stiffness

References at().

Here is the call graph for this function:

◆ R_()

template<typename T>

T micromechanical::core::Material< T >::R_ ( const int idx )

inline

ratio of normal to tangential stiffness

References get_().

Here is the call graph for this function:

◆ rho()

template<typename T>

T micromechanical::core::Material< T >::rho ( ) const

inline

a parameter controlling the rate of particle breakage

References at().

Here is the call graph for this function:

◆ rho_()

template<typename T>

T micromechanical::core::Material< T >::rho_ ( const int idx )

inline

a parameter controlling the rate of particle breakage

References get_().

Here is the call graph for this function:

◆ rhoc()

template<typename T>

T micromechanical::core::Material< T >::rhoc ( ) const

inline

slope of the LCC line in the log(e) - log(p) space

References at().

Here is the call graph for this function:

◆ rhoc_()

template<typename T>

T micromechanical::core::Material< T >::rhoc_ ( const int idx )

inline

slope of the LCC line in the log(e) - log(p) space

References get_().

Here is the call graph for this function:

◆ sanisand() [1/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::sanisand ( const std::vector< T > & props )

inlinestatic

Create a sanisand material.

Parameters

props Material properties

Returns: mcc material

References create(), and props.

Referenced by sanisand().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sanisand() [2/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::sanisand ( T * props )

inlinestatic

Create a sanisand material.

Parameters

props Material properties

Returns: mcc material

References props, and sanisand().

Here is the call graph for this function:

◆ set()

template<typename T>

void micromechanical::core::Material< T >::set	(	const std::string &	key,
		T	value )

inline

Set material properties.

Parameters

key	Property name
value	Property value

Referenced by __setitem__().

Here is the caller graph for this function:

◆ setAnisotropicParameters()

template<typename T>

void micromechanical::core::Material< T >::setAnisotropicParameters	(	const std::string &	key,
		const std::string &	type = "chang1990-ext",
		std::string	evolution = "zhao2020",
		const std::map< std::string, T > &	coefs = {} )

inline

Set anisotropic parameters.

Parameters

key	The key of the anisotropic parameter
type	fabric tensor type
evolution	evolution type
coefs	fabric tensor coefficients

◆ simsand() [1/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::simsand ( const std::vector< T > & props )

inlinestatic

Create a simsand material.

Parameters

props Material properties

Returns: mcc material

References create(), and props.

Referenced by simsand().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ simsand() [2/2]

template<typename T>

static std::map< std::string, T > micromechanical::core::Material< T >::simsand ( T * props )

inlinestatic

Create a simsand material.

Parameters

props Material properties

Returns: mcc material

References props, and simsand().

Here is the call graph for this function:

◆ sin_phi_mises()

template<typename T>

T micromechanical::core::Material< T >::sin_phi_mises	(	T	ba = 0.0,
		T	Ra = 1.0 ) const

inline

Friction angle sine of Von Mises failure criteria.

References get(), phi(), and PI.

Referenced by phi_combined().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sin_phi_smp()

template<typename T>

T micromechanical::core::Material< T >::sin_phi_smp	(	T	ba = 0.0,
		T	Ra = 1.0 ) const

inline

Friction angle sine of SMP failure criteria.

References get(), phi(), and PI.

Referenced by phi_combined().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sin_phi_tresca()

template<typename T>

T micromechanical::core::Material< T >::sin_phi_tresca	(	T	ba = 0.0,
		T	Ra = 1.0 ) const

inline

Friction angle sine of Tresca failure criteria.

References get(), phi(), and PI.

Referenced by phi_combined().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ theta()

template<typename T>

T micromechanical::core::Material< T >::theta ( ) const

inline

a constant exponent in the hardening behavior of p0

References at().

Here is the call graph for this function:

◆ theta_()

template<typename T>

T micromechanical::core::Material< T >::theta_ ( const int idx )

inline

a constant exponent in the hardening behavior of p0

References get_().

Here is the call graph for this function:

◆ V()

template<typename T>

T micromechanical::core::Material< T >::V ( ) const

inline

a large model parameter

References at().

Here is the call graph for this function:

◆ V_()

template<typename T>

T micromechanical::core::Material< T >::V_ ( const int idx )

inline

a large model parameter

References get_().

Here is the call graph for this function:

◆ vf()

template<typename T>

T micromechanical::core::Material< T >::vf ( ) const

inline

final slope of normal displacement versus tangential displacement curve

References at().

Here is the call graph for this function:

◆ vf_()

template<typename T>

T micromechanical::core::Material< T >::vf_ ( const int idx )

inline

final slope of normal displacement versus tangential displacement curve

References get_().

Here is the call graph for this function:

◆ vi()

template<typename T>

T micromechanical::core::Material< T >::vi ( ) const

inline

initial slope of normal displacement versus tangential displacement curve

References at().

Here is the call graph for this function:

◆ vi_()

template<typename T>

T micromechanical::core::Material< T >::vi_ ( const int idx )

inline

initial slope of normal displacement versus tangential displacement curve

References get_().

Here is the call graph for this function:

◆ X()

template<typename T>

T micromechanical::core::Material< T >::X ( ) const

inline

a positive model parameter

References at().

Here is the call graph for this function:

◆ X_()

template<typename T>

T micromechanical::core::Material< T >::X_ ( const int idx )

inline

a positive model parameter

References get_().

Here is the call graph for this function:

◆ xi()

template<typename T>

T micromechanical::core::Material< T >::xi ( ) const

inline

a parameter controlling the shape of critical state line

References at().

Here is the call graph for this function:

◆ xi_()

template<typename T>

T micromechanical::core::Material< T >::xi_ ( const int idx )

inline

a parameter controlling the shape of critical state line

References get_().

Here is the call graph for this function:

◆ xib()

template<typename T>

T micromechanical::core::Material< T >::xib ( ) const

inline

a parameter controlling the hardening of the adhesive force

References at().

Here is the call graph for this function:

◆ xib_()

template<typename T>

T micromechanical::core::Material< T >::xib_ ( const int idx )

inline

a parameter controlling the hardening of the adhesive force

References get_().

Here is the call graph for this function:

◆ xic()

template<typename T>

T micromechanical::core::Material< T >::xic ( ) const

inline

a parameter controlling the hardening of the size of the yield surface

References at().

Here is the call graph for this function:

◆ xic_()

template<typename T>

T micromechanical::core::Material< T >::xic_ ( const int idx )

inline

a parameter controlling the hardening of the size of the yield surface

References get_().

Here is the call graph for this function:

Member Data Documentation

◆ fabrics

template<typename T>

std::map<std::string, std::shared_ptr<FabricTensor<T> > > micromechanical::core::Material< T >::fabrics = {}

Fabric tensors.

◆ integration

template<typename T>

std::shared_ptr<Integration<T> > micromechanical::core::Material< T >::integration = std::shared_ptr<Integration<T>>(nullptr)

Integration.

◆ props

template<typename T>

std::map<std::string, T> micromechanical::core::Material< T >::props = {}

Material properties.

Referenced by coulomb(), coulomb(), create(), elastic(), elastic(), exponential(), exponential(), hyperbolic(), hyperbolic(), hypoplastic(), hypoplastic(), Material(), mcc(), mcc(), osimsand(), osimsand(), sanisand(), sanisand(), simsand(), and simsand().

The documentation for this struct was generated from the following file:

include/micromechanical/core/material.hpp

Public Member Functions

Static Public Member Functions

Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Material()

◆ ~Material()

Member Function Documentation

◆ __contains__()

◆ __setitem__()

◆ Ad()

◆ Ad_()

◆ anisotropicFactor()

◆ at()

◆ b()

◆ b_()

◆ c()

◆ c_()

◆ ch()

◆ ch_()

◆ chi0()

◆ chi0_()

◆ cohesion()

◆ cohesion_()

◆ coulomb() [1/2]

◆ coulomb() [2/2]

◆ create()

◆ e0()

◆ e0_()

◆ ec0()

◆ ec0_()

◆ elastic() [1/2]

◆ elastic() [2/2]

◆ emax()

◆ emax_()

◆ emin()

◆ emin_()

◆ eref()

◆ eref0()

◆ eref0_()

◆ eref_()

◆ erefu()

◆ erefu_()

◆ exponential() [1/2]

◆ exponential() [2/2]

◆ fb0()

◆ fb0_()

◆ fc0()

◆ fc0_()

◆ fnr_()

◆ fref()

◆ fref_()

◆ get()

◆ get_()

◆ h0()

◆ h0_()

◆ hp()

◆ hp_()

◆ hyperbolic() [1/2]

◆ hyperbolic() [2/2]

◆ hypoplastic() [1/2]

◆ hypoplastic() [2/2]

◆ initialize()

◆ kappa()

◆ kappa_()

◆ kn0()

◆ kn0_()

◆ kp()

◆ kp_()

◆ kpr()

◆ kpr_()

◆ krr()

◆ krr_()

◆ kt0()

◆ kt0_()

◆ Lambda()

◆ Lambda_()

◆ m()

◆ m_()

◆ Mc()

◆ contains()

◆ setitem()
