micromechanical::StateVariables< T > Struct Template Reference

Map of state variables for all steps for micromechanical models. More...

#include <statevariables.hpp>

Public Types
typedef T(StateVariable< T >::*	ScalarMethodType) () const
	scalar state variable, I1/I2/I3/J2/J3/p/q/eta/epsv/epsa
typedef T(StateVariable< T >::*	IntegrationScalarMethodType) (int) const
	scalar state variable of an integration point, fn/fs/ft/fr/feta/un/us/ut/ur/upn/ups/upt/upr

Public Member Functions
	StateVariables (std::vector< StateVariable< T > > svs={})
	Construct from a vector of state variables.
int	size () const
	Get the number of state variables.
StateVariable< T > &	operator[] (const int &idx)
	Access a state variable.
StateVariable< T >	operator[] (const int &idx) const
	Access a state variable.
StateVariable< T >	at (const int &idx) const
	Access a state variable.
Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic >	get (const std::string &name, int idx=-1) const
	Get a state variable,
Eigen::Matrix< T, Eigen::Dynamic, 1 >	e () const
	void ratio
Eigen::Matrix< T, Eigen::Dynamic, 1 >	ec () const
	critical void ratio
Eigen::Matrix< T, Eigen::Dynamic, 6 >	sig () const
	stress vector
Eigen::Matrix< T, Eigen::Dynamic, 6 >	eps () const
	strain vector
Eigen::Matrix< T, Eigen::Dynamic, 6 >	epsp () const
	plastic strain vector
Eigen::Matrix< T, Eigen::Dynamic, 1 >	I1 () const
	Get the first invariant of the stress tensor.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	I2 () const
	Get the second invariant of the stress tensor.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	I3 () const
	Get the third invariant of the stress tensor.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	J2 () const
	Get the second invariant of the deviatoric stress tensor.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	J3 () const
	Get the third invariant of the deviatoric stress tensor.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	p () const
	Get the mean stress.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	q () const
	Get the deviatoric stress.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	eta () const
	Get the stress ratio.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	epsv () const
	Get the volumetric strain.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	epsa () const
	Get the axial strain.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	eeq () const
	Get the equivalent strain.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	epspv () const
	Get the plastic volumetric strain.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	epspa () const
	Get the plastic axial strain.

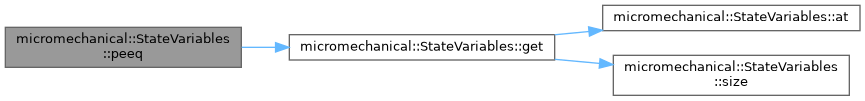

Eigen::Matrix< T, Eigen::Dynamic, 1 >	peeq () const
	Get the equivalent plastic strain.
Eigen::Matrix< T, Eigen::Dynamic, 3 >	force (int idx) const
	force
Eigen::Matrix< T, Eigen::Dynamic, 1 >	fn (int idx) const
	Get the normal force.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	fs (int idx) const
	Get the shear force at the first direction.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	ft (int idx) const
	Get the shear force at the second direction.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	fr (int idx) const
	Get the shear force.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	feta (int idx) const
	Get the shear force ratio.
Eigen::Matrix< T, Eigen::Dynamic, 3 >	disp (int idx) const
	displacement
Eigen::Matrix< T, Eigen::Dynamic, 1 >	un (int idx) const
	Get the normal displacement.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	us (int idx) const
	Get the shear displacement at the first direction.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	ut (int idx) const
	Get the shear displacement at the second direction.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	ur (int idx) const
	Get the shear displacement.
Eigen::Matrix< T, Eigen::Dynamic, 3 >	dispp (int idx) const
	plastic displacement
Eigen::Matrix< T, Eigen::Dynamic, 1 >	upn (int idx) const
	Get the plastic normal displacement.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	ups (int idx) const
	Get the plastic shear displacement at the first direction.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	upt (int idx) const
	Get the plastic shear displacement at the second direction.
Eigen::Matrix< T, Eigen::Dynamic, 1 >	upr (int idx) const
	Get the plastic shear displacement.

Public Attributes
std::map< std::string, ScalarMethodType >	scalar_state_variables
	map of scalar state variables
std::map< std::string, IntegrationScalarMethodType >	integration_scalar_state_variables
	map of scalar state variables of an integration point
std::vector< StateVariable< T > >	svs = {}

Detailed Description

template<typename T>
struct micromechanical::StateVariables< T >

Map of state variables for all steps for micromechanical models.

Member Typedef Documentation

IntegrationScalarMethodType

template<typename T>

typedef T(StateVariable< T >::* micromechanical::StateVariables< T >::IntegrationScalarMethodType) (int) const

scalar state variable of an integration point, fn/fs/ft/fr/feta/un/us/ut/ur/upn/ups/upt/upr

ScalarMethodType

template<typename T>

typedef T(StateVariable< T >::* micromechanical::StateVariables< T >::ScalarMethodType) () const

scalar state variable, I1/I2/I3/J2/J3/p/q/eta/epsv/epsa

Constructor & Destructor Documentation

StateVariables()

template<typename T>

micromechanical::StateVariables< T >::StateVariables ( std::vector< StateVariable< T > > svs = {} )

inlineexplicit

Construct from a vector of state variables.

Parameters

svs	Vector of state variables

References svs.

Member Function Documentation

at()

template<typename T>

StateVariable< T > micromechanical::StateVariables< T >::at ( const int & idx ) const

inline

Access a state variable.

Parameters

idx	Index of the state variable

Returns

State variable

Referenced by get().

Here is the caller graph for this function:

disp()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 3 > micromechanical::StateVariables< T >::disp ( int idx ) const

inline

displacement

References get().

Here is the call graph for this function:

dispp()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 3 > micromechanical::StateVariables< T >::dispp ( int idx ) const

inline

plastic displacement

References get().

Here is the call graph for this function:

e()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::e ( ) const

inline

void ratio

References get().

Here is the call graph for this function:

ec()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::ec ( ) const

inline

critical void ratio

References get().

Here is the call graph for this function:

eeq()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::eeq ( ) const

inline

Get the equivalent strain.

Returns

Equivalent strain

References get().

Here is the call graph for this function:

eps()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 6 > micromechanical::StateVariables< T >::eps ( ) const

inline

strain vector

References get().

Here is the call graph for this function:

epsa()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::epsa ( ) const

inline

Get the axial strain.

Returns

Axial strain

References get().

Here is the call graph for this function:

epsp()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 6 > micromechanical::StateVariables< T >::epsp ( ) const

inline

plastic strain vector

References get().

Here is the call graph for this function:

epspa()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::epspa ( ) const

inline

Get the plastic axial strain.

Returns

Axial plastic strain

References get().

Here is the call graph for this function:

epspv()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::epspv ( ) const

inline

Get the plastic volumetric strain.

Returns

Volumetric plastic strain

References get().

Here is the call graph for this function:

epsv()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::epsv ( ) const

inline

Get the volumetric strain.

Returns

Volumetric strain

References get().

Here is the call graph for this function:

eta()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::eta ( ) const

inline

Get the stress ratio.

Returns

Stress ratio

References get().

Here is the call graph for this function:

feta()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::feta ( int idx ) const

inline

Get the shear force ratio.

Parameters

idx	Index of the integration point

Returns

Shear force ratio

References get().

Here is the call graph for this function:

fn()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::fn ( int idx ) const

inline

Get the normal force.

Parameters

idx	Index of the integration point

Returns

Normal force

References get().

Here is the call graph for this function:

force()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 3 > micromechanical::StateVariables< T >::force ( int idx ) const

inline

force

References get().

Here is the call graph for this function:

fr()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::fr ( int idx ) const

inline

Get the shear force.

Parameters

idx	Index of the integration point

Returns

Shear force

References get().

Here is the call graph for this function:

fs()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::fs ( int idx ) const

inline

Get the shear force at the first direction.

Parameters

idx	Index of the integration point

Returns

Shear force at the first direction

References get().

Here is the call graph for this function:

ft()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::ft ( int idx ) const

inline

Get the shear force at the second direction.

Parameters

idx	Index of the integration point

Returns

Shear force at the second direction

References get().

Here is the call graph for this function:

get()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, Eigen::Dynamic > micromechanical::StateVariables< T >::get ( const std::string & name, int idx = -1 ) const

inline

Get a state variable,

• shape (n, 1): e/ec/I1/I2/I3/J2/J3/p/q/eta/epsv/epsa/eeq/epspv/epspa/ peeq
• shape (n, 6): sig/eps/epsp
• shape (n, 1): fn/fs/ft/fr/feta/un/us/ut/ur/upn/ups/upt/upr, idx must be provided
• shape (n, 3): force/disp/dispp, idx must be provided

  Parameters

  name	Name of the state variable
  idx	Index of the integration point

References at(), integration_scalar_state_variables, scalar_state_variables, and size().

Referenced by disp(), dispp(), e(), ec(), eeq(), eps(), epsa(), epsp(), epspa(), epspv(), epsv(), eta(), feta(), fn(), force(), fr(), fs(), ft(), I1(), I2(), I3(), J2(), J3(), p(), peeq(), q(), sig(), un(), upn(), upr(), ups(), upt(), ur(), us(), and ut().

Here is the call graph for this function:

Here is the caller graph for this function:

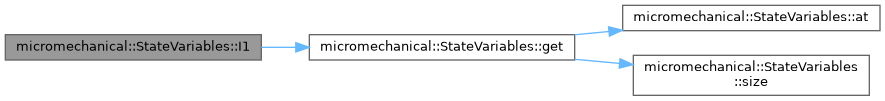

I1()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::I1 ( ) const

inline

Get the first invariant of the stress tensor.

Returns

First invariant of the stress tensor

References get().

Here is the call graph for this function:

I2()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::I2 ( ) const

inline

Get the second invariant of the stress tensor.

Returns

Second invariant of the stress tensor

References get().

Here is the call graph for this function:

I3()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::I3 ( ) const

inline

Get the third invariant of the stress tensor.

Returns

Third invariant of the stress tensor

References get().

Here is the call graph for this function:

J2()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::J2 ( ) const

inline

Get the second invariant of the deviatoric stress tensor.

Returns

Second invariant of the deviatoric stress tensor

References get().

Here is the call graph for this function:

J3()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::J3 ( ) const

inline

Get the third invariant of the deviatoric stress tensor.

Returns

Third invariant of the deviatoric stress tensor

References get().

Here is the call graph for this function:

operator[]() [1/2]

template<typename T>

StateVariable< T > & micromechanical::StateVariables< T >::operator[] ( const int & idx )

inline

Access a state variable.

Parameters

idx	Index of the state variable

Returns

State variable

operator[]() [2/2]

template<typename T>

StateVariable< T > micromechanical::StateVariables< T >::operator[] ( const int & idx ) const

inline

Access a state variable.

Parameters

idx	Index of the state variable

Returns

State variable

p()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::p ( ) const

inline

Get the mean stress.

Returns

Mean stress

References get().

Here is the call graph for this function:

peeq()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::peeq ( ) const

inline

Get the equivalent plastic strain.

Returns

Equivalent plastic strain

References get().

Here is the call graph for this function:

q()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::q ( ) const

inline

Get the deviatoric stress.

Returns

Deviatoric stress

References get().

Here is the call graph for this function:

sig()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 6 > micromechanical::StateVariables< T >::sig ( ) const

inline

stress vector

References get().

Here is the call graph for this function:

size()

template<typename T>

int micromechanical::StateVariables< T >::size ( ) const

inline

Get the number of state variables.

Returns

Number of state variables

Referenced by get().

Here is the caller graph for this function:

un()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::un ( int idx ) const

inline

Get the normal displacement.

Parameters

idx	Index of the integration point

Returns

Normal displacement

References get().

Here is the call graph for this function:

upn()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::upn ( int idx ) const

inline

Get the plastic normal displacement.

Parameters

idx	Index of the integration point

Returns

plastic normal displacement

References get().

Here is the call graph for this function:

upr()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::upr ( int idx ) const

inline

Get the plastic shear displacement.

Parameters

idx	Index of the integration point

Returns

plastic shear displacement

References get().

Here is the call graph for this function:

ups()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::ups ( int idx ) const

inline

Get the plastic shear displacement at the first direction.

Parameters

idx	Index of the integration point

Returns

plastic shear displacement at the first direction

References get().

Here is the call graph for this function:

upt()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::upt ( int idx ) const

inline

Get the plastic shear displacement at the second direction.

Parameters

idx	Index of the integration point

Returns

Plastic shear displacement at the second direction

References get().

Here is the call graph for this function:

ur()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::ur ( int idx ) const

inline

Get the shear displacement.

Parameters

idx	Index of the integration point

Returns

Shear displacement

References get().

Here is the call graph for this function:

us()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::us ( int idx ) const

inline

Get the shear displacement at the first direction.

Parameters

idx	Index of the integration point

Returns

Shear displacement at the first direction

References get().

Here is the call graph for this function:

ut()

template<typename T>

Eigen::Matrix< T, Eigen::Dynamic, 1 > micromechanical::StateVariables< T >::ut ( int idx ) const

inline

Get the shear displacement at the second direction.

Parameters

idx	Index of the integration point

Returns

Shear displacement at the second direction

References get().

Here is the call graph for this function:

Member Data Documentation

integration_scalar_state_variables

template<typename T>

std::map<std::string, IntegrationScalarMethodType> micromechanical::StateVariables< T >::integration_scalar_state_variables

Initial value:

= {
        {"fn", &StateVariable<T>::fn},   {"fs", &StateVariable<T>::fs},     {"ft", &StateVariable<T>::ft},
        {"fr", &StateVariable<T>::fr},   {"feta", &StateVariable<T>::feta}, {"un", &StateVariable<T>::un},
        {"us", &StateVariable<T>::us},   {"ut", &StateVariable<T>::ut},     {"ur", &StateVariable<T>::ur},
        {"upn", &StateVariable<T>::upn}, {"ups", &StateVariable<T>::ups},   {"upt", &StateVariable<T>::upt},
        {"upr", &StateVariable<T>::upr},
    }

map of scalar state variables of an integration point

Referenced by get().

scalar_state_variables

template<typename T>

std::map<std::string, ScalarMethodType> micromechanical::StateVariables< T >::scalar_state_variables

Initial value:

= {
        {"I1", &StateVariable<T>::I1},       {"I2", &StateVariable<T>::I2},     {"I3", &StateVariable<T>::I3},
        {"J2", &StateVariable<T>::J2},       {"J3", &StateVariable<T>::J3},     {"p", &StateVariable<T>::p},
        {"q", &StateVariable<T>::q},         {"eta", &StateVariable<T>::eta},   {"epsv", &StateVariable<T>::epsv},
        {"epsa", &StateVariable<T>::epsa},   {"eeq", &StateVariable<T>::eeq},   {"epspv", &StateVariable<T>::epspv},
        {"epspa", &StateVariable<T>::epspa}, {"peeq", &StateVariable<T>::peeq},
    }

map of scalar state variables

Referenced by get().

svs

template<typename T>

std::vector<StateVariable<T> > micromechanical::StateVariables< T >::svs = {}

Referenced by StateVariables().

---

The documentation for this struct was generated from the following file:

• include/micromechanical/statevariables.hpp
