Gu et al. (2017)

Anisotropic elasticity of Toyoura sand ¹.

import pandas as pd

from micromechanical.cli.plot import PlotCLI, PlotConfig

config: PlotConfig = PlotCLI.loadConfig("../../calibrations/micromechanical-plots.yaml")

Out:

/home/runner/work/micromechanical/micromechanical/micromechanical/cli/plot.py:52: UserWarning: Calibration file /home/runner/work/micromechanical/micromechanical/calibrations/Calibrations/Gu2024-CT-Dense-Static.json not found, skipping.
  warnings.warn(f"Calibration file {path.as_posix()} not found, skipping.")
/home/runner/work/micromechanical/micromechanical/micromechanical/cli/plot.py:52: UserWarning: Calibration file /home/runner/work/micromechanical/micromechanical/calibrations/Calibrations/Gu2024-CT-Dense-Kinematic.json not found, skipping.
  warnings.warn(f"Calibration file {path.as_posix()} not found, skipping.")
/home/runner/work/micromechanical/micromechanical/micromechanical/cli/plot.py:52: UserWarning: Calibration file /home/runner/work/micromechanical/micromechanical/calibrations/Calibrations/Gu2024-CT-Medium-Dense-Static.json not found, skipping.
  warnings.warn(f"Calibration file {path.as_posix()} not found, skipping.")
/home/runner/work/micromechanical/micromechanical/micromechanical/cli/plot.py:52: UserWarning: Calibration file /home/runner/work/micromechanical/micromechanical/calibrations/Calibrations/Gu2024-CT-Medium-Dense-Kinematic.json not found, skipping.
  warnings.warn(f"Calibration file {path.as_posix()} not found, skipping.")

Kinematic Hypothesis

plot_name = "Gu2017-Isotropic-Kinematic"
plot_config = config.plots[plot_name]
pd.DataFrame(
    {
        key.replace("micromechanical.calibrationkey:MaterialFabricCoefficientKey(car,F)", "F"): value
        for key, value in plot_config.calibration.read(config.root).parameters.items()
        if key not in ["F1", "F2", "F12", "F13", "F23", "sigc", "sig1", "sig2", "sig3", "cc", "ncc", "force_numerical",
                       "force_dependent_stiffness", "major_axes", "voigt_notation", "unit",
                       "car", "car_anisotropy_type", "car_anisotropy_major_axes"]
    },
    index=["Gu2017"],
)  # fmt: skip

	CN0	Gg	cr	kn	krr	F	n	npv	nr	nug	radius
Gu2017	5.937076	4.779100e+10	6.090662	80.0	1.203	1.254599	0.351	2.000000e+11	0.425	0.2	0.000108

Static Hypothesis

plot_name = "Gu2017-Isotropic-Static"
plot_config = config.plots[plot_name]
pd.DataFrame(
    {
        key.replace("micromechanical.calibrationkey:MaterialFabricCoefficientKey(car,F)", "F"): value
        for key, value in plot_config.calibration.read(config.root).parameters.items()
        if key not in ["F1", "F2", "F12", "F13", "F23", "sigc", "sig1", "sig2", "sig3", "cc", "ncc", "force_numerical",
                       "force_dependent_stiffness", "major_axes", "voigt_notation", "unit",
                       "car", "car_anisotropy_type", "car_anisotropy_major_axes"]
    },
    index=["Gu2017"],
)  # fmt: skip

	CN0	Gg	cr	kn	krr	F	n	npv	nr	nug	radius
Gu2017	5.937076	4.779100e+10	2.776362	80.0	0.993	1.216263	0.351	2.000000e+11	0.396	0.2	0.000108

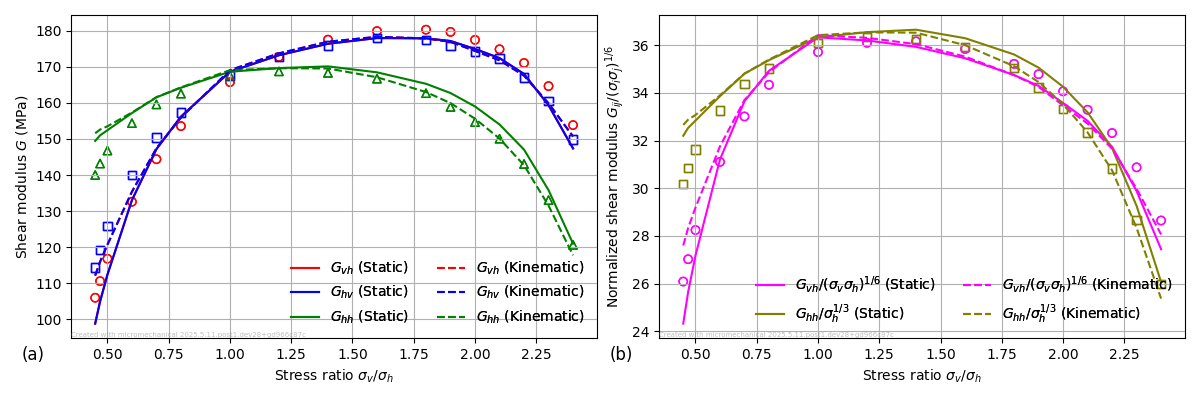

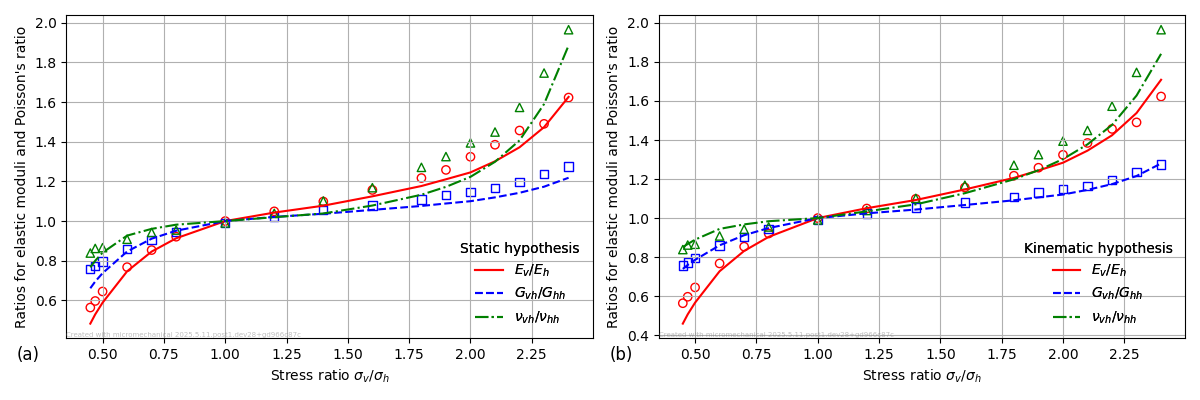

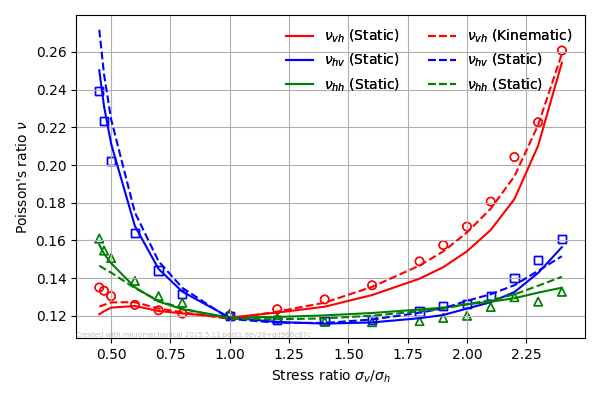

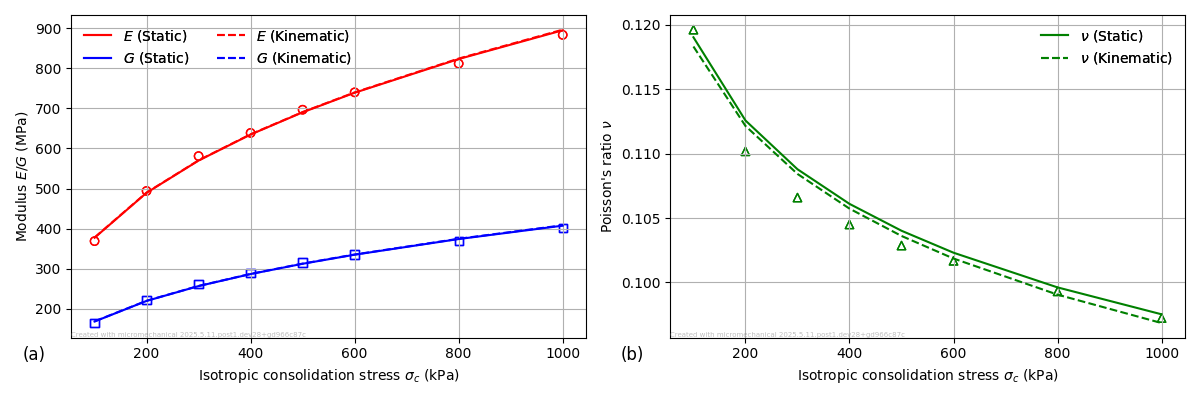

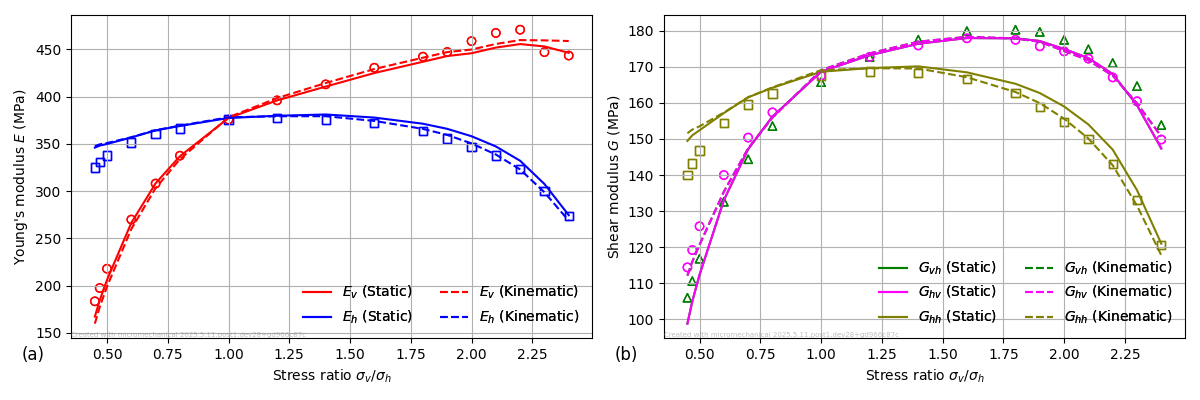

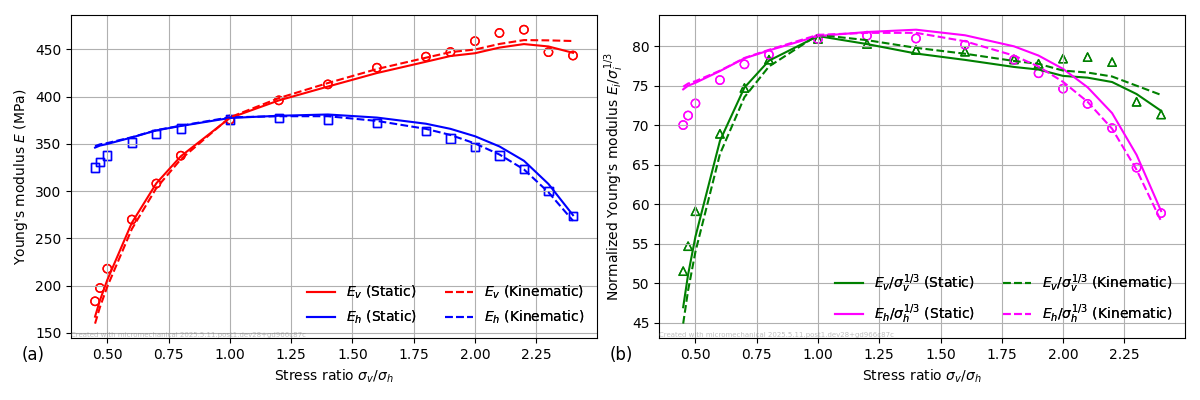

Figures

for plot_name, plot_config in config.plots.items():
    if not plot_name.startswith("Gu2017"):
        continue

    plot_config.plot(plot_name, grids=config.grids, save=False, overwrite=False)

Total running time of the script: ( 0 minutes 25.644 seconds)

Download Python source code: plot_gu2017.py

Download Jupyter notebook: plot_gu2017.ipynb

Gallery generated by mkdocs-gallery

Gu, X., Hu, J., & Huang, M. (2017). Anisotropy of elasticity and fabric of granular soils. Granular Matter, 19(2), 33. https://doi.org/10.1007/s10035-017-0717-6 ↩
